Dual Switches Suitable for 2nd Gen MU-X

Code: DSW

Free up additional switch locations with a range of replacement dual switches that combine factory switch functions, suitable for the second generation Isuzu MU-X models from 2021-onwards.

Theses switches are a direct replacement simple plug & play integration with no modification to your trim or factory wiring required.







AUD$55.00 – AUD$110.00

In stock

Description

Hands free rear tailgate & rear AC fan switch (A)

Suitable for the MU-X models that have the factory hands free off switch option.

Low on switch locations, this dual switch combines the factory hands-free off switch and the rear fan functions into a single switch location.

Replaces two separate factory switches with one dual function switch this is a direct replacement, no changes or modifications to the factory wiring required.

Simply unplug the factory connectors remove the factory switches and connect the supplied harness and dual switch.

The dual switch illumination is fully dimmable via the factory dimmer switch.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains all factory functions
  • LED illumination – white (Blue- switch on).

Installation:

Remove the coin tray to gain access behind the switch panel, so the factory switches can be removed.

Remove the factory switches, by depressing the top and bottom retaining clips inwards then pushing the switch out, remove the connector by pushing the central locking tab inwards.

Fit the corresponding connectors on the patch harness to the appropriate factory connectors ensuring the connector is fully inserted and locked into position, then fit dual switch into the dash.



Open/close tailgate & hands free tailgate switch (B)

Replaces two separate factory switches with one dual function switch this is a direct replacement, no changes or modifications to the factory wiring required.

Simply unplug the factory connectors remove the factory switches and connect the supplied harness and dual switch.

The dual switch illumination is fully dimmable via the factory dimmer switch.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains all factory functions
  • LED illumination – white (Blue- switch on)

Installation:

Remove the coin tray to gain access behind the switch panel, so the factory switches can be removed.

Remove the factory switches, by depressing the top and bottom retaining clips inwards then pushing the switch out, remove the connector by pushing the central locking tab inwards.

Fit the corresponding connectors on the patch harness to the appropriate factory connectors ensuring the connector is fully inserted and locked into position, then fit dual switch into the dash.

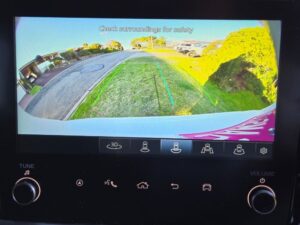

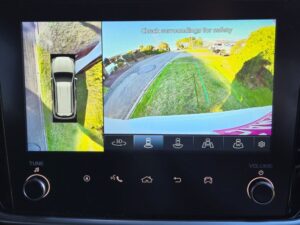

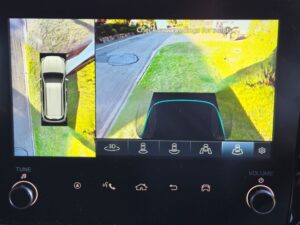

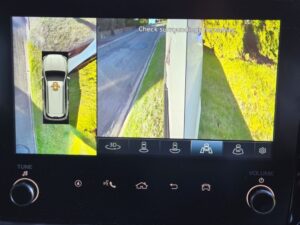

Anytime Reverse – Factory Reverse Camera switch incorporating rear AC fan switch  (C)

Enables you to display the factory reverse camera in any gear, by simply activating the supplied factory styled dual dash switch, that fits into the existing rear fan switch location located on the upper right hand side of the dash. Once activated your factory reverse camera is displayed on the existing factory head unit regardless of the gear selected.

When the switch is in the off position the reverse camera will only then be activated on the factory head unit, once reverse gear has been selected.

The dual switch is also a direct plug and play replacement for the factory rear fan switch,  no modification to the factory wiring is required, simply remove existing factory rear fan switch and fit replacement dual switch. Once the dual switch is fitted the rear fan switch functions in exactly the same way as the factory switch did.



  • System is fully plug & play zero modification to the factory wiring is required – no cutting or splicing wires required during installation, simply fit our patch harness between the existing factory connectors
  • Factory styled dual switch incorporating anytime switch and rear fan switch is provided for seamless integration into your dash
  • Dual switch illumination is fully dimmable when adjusting factory dimmer controller – white illumination (switch off) blue illumination (switch on)
  • Navigation, radio, Bluetooth, Android Auto & Apple Car Play audio is uninterrupted when the anytime switch is in the on position
  • For use with the factory reverse camera only (NOT suitable for adding an additional AUX camera)
  • The factory head unit is NOT required to be removed to undertake the installation, estimated installation time 20min
  • Tools required – Trim tool
  • Installation instructions are included via the QR code on the front of the packaging.

NOTE: This system will only display the factory reveres camera it is not suitable for fitment of dual cameras, refer to our AT2 systems.



Driving lights switch incorporating rear AC fan switch (D)

Simply replace the existing factory fan switch with this dual switch that incorporates the rear fan function and an additional input for driving lights, connect our plug and play harness to the factory fan connector then connect your 12v Hi beam input and switched output to your existing driving light harness or use our MU-X patch harness # MUXPATCH

Top switch wiring:

Red wire 12v input (from vehicles Hi beam circuit)
Blue wire 12v switched output to driving lights relay.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains all factory functions
  • LED illumination – white (Blue- switch on)
  • Switch working current 3 amps (relay must be used).



LED Bar switch incorporating rear AC fan switch (E)

Simply replace the existing factory fan switch with this dual switch that incorporates the rear fan function and an additional input for a LED Bar, connect our plug and play harness to the factory fan connector then connect your 12v Hi beam input and switched output to your existing driving light harness or use our MU-X patch harness # MUXPATCH

Top switch wiring:

Red wire 12v input (from vehicles Hi beam circuit)
Blue wire 12v switched output to LED Bar relay.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains all factory functions
  • LED illumination – white (Blue- switch on)
  • Switch working current 3 amps (relay must be used).



Custom – incorporating rear AC fan switch (F)

Simply replace the existing factory fan switch with this dual switch that incorporates the rear fan function and an additional input, connect our plug and play harness to the factory fan connector then connect your 12v input and switched output to your wiring harness relay

Top switch wiring:

Red wire 12v input
Blue wire 12v switched output to LED Bar relay.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains all factory functions
  • LED illumination – white (Blue- switch on)
  • Switch working current 3 amps (relay must be used).

Just leave a comment during check out or contact us prior to purchase for the icon you require on the top half of the switch, we will notify you if not possible (due to space limitations).

Additional information

Weight 0.25 kg
Dimensions 5 × 5 × 6 cm
Switch Option

A : Hands free rear tailgate & rear AC fan, B : Open-close tailgate & hands free tailgate, C : Factory Reverse Camera switch & rear AC fan, D : Driving lights switch incorporating rear AC fan, E : LED Bar switch incorporating rear AC fan, F : Custom icon incorporating rear AC fan
Make Model Year
Electrical Universal 2021 - 2024
Isuzu MU-X 2021 - 2024
