D-MAX, MU-X & BT-50 Headlight Patch Harness

Code: MUXPATCH

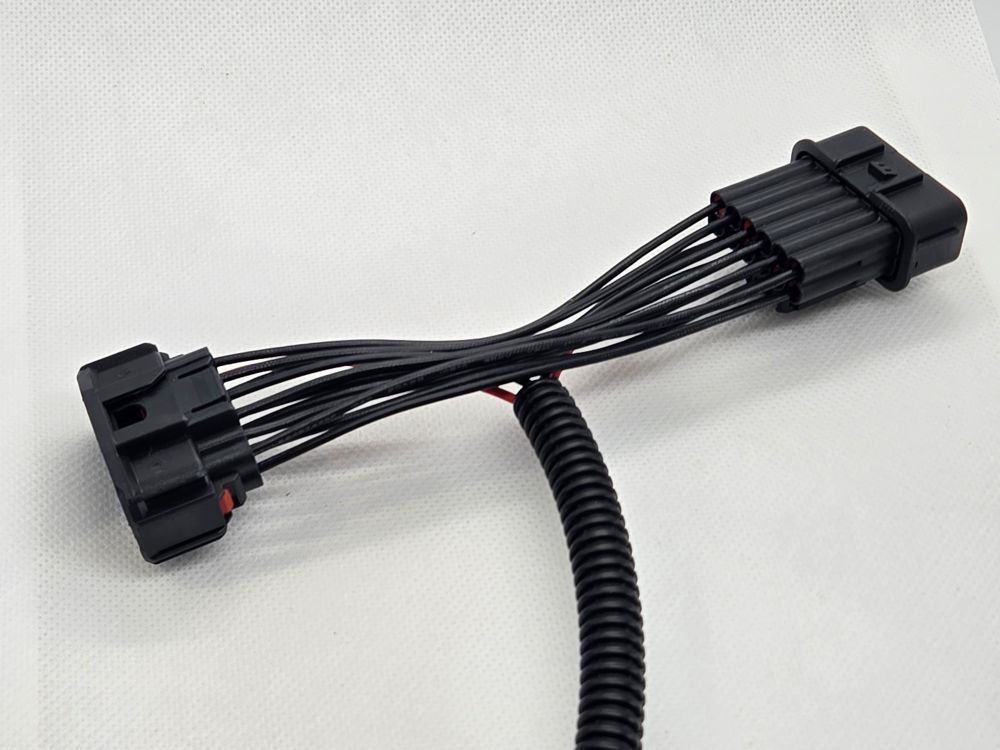

This patch harness gets fitted inside the vehicle just above the drivers side kick panel  and provides a 12 volt output whenever the vehicles high beam headlights are activated.

No cutting of the factory wiring is required, simply unplug the existing factory connector and fit the patch harness between the factory connectors and then connect the output connector to your existing wiring harness.

This patch harness is also compatible with the D-Max and BT-50 models that have factory LED headlights.



AUD$33.00

In stock

In stock

Description

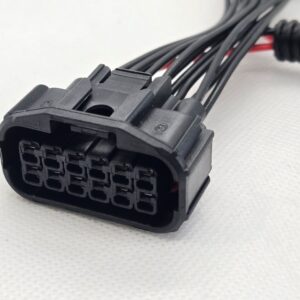

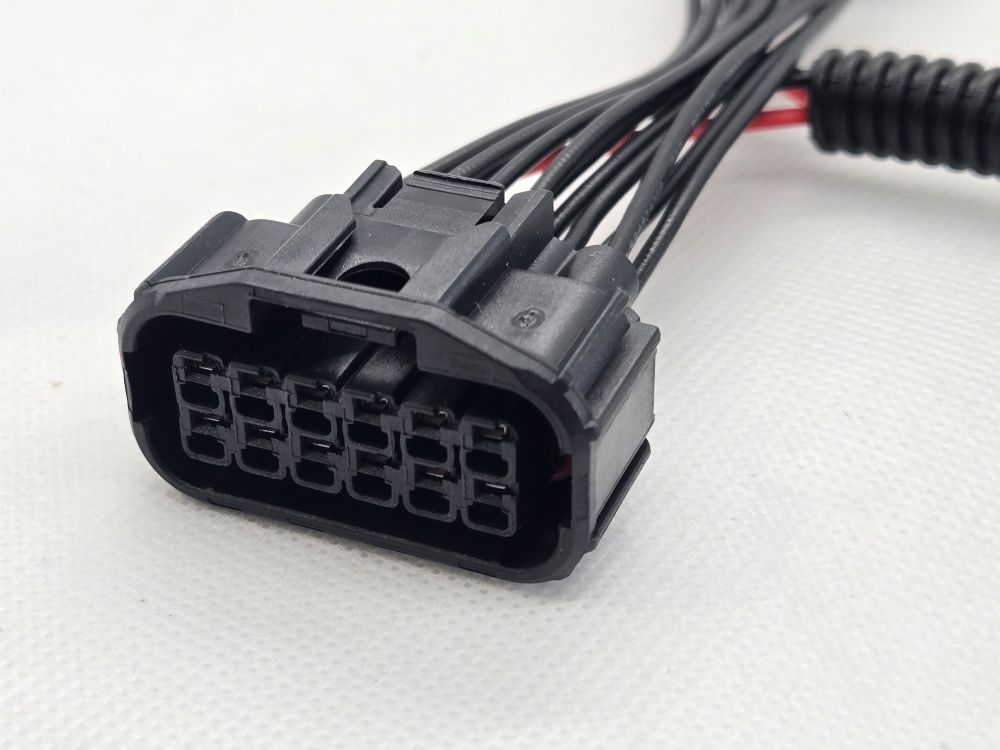

Single connector and terminal included so you can connect to your wiring harness.
Additional wiring options including low beam and running light pick up are made to order we can also supply factory style switch, even if you do not have any switch blank locations remaining on the right hand side of the steering we have a solution, just send us an email with your requirements.
If you require a patch harness that fits directly into the head light within the engine bay refer here

Additional information

Weight 0.050 kg
Dimensions 15 × 5 × 3 cm
Make Model Year
Electrical Universal 2021 - 2024
Isuzu D-Max 2021 - 2023
Isuzu MU-X 2021 - 2023
Mazda BT-50 2021 - 2023
