Dual Switches Suitable for Suzuki Jimny

Code: DSWSJ
Dual switches suitable for the Suzuki Jimny  2018 – onward models (JB74).

Replaces standard single factory switches to dual function switches, freeing up space for additional switches.

Custom options also available

AUD$27.50 – AUD$55.00

In stock

Description

Lane Departure Warning & Driving Assist dual switch (A)

Suitable for the 3dr models that have the single factory Lane Departure Warning (Off) and Driving Assist (DSBS) switches.

Low on switch locations, this dual switch combines the factory Lane Departure Warning off switch and the Driving Assist functions into a single switch location.

Replaces two separate factory switches with one dual function switch this is a direct replacement, no changes or modifications to the factory wiring required.

Simply unplug the factory connectors remove the factory switches and connect the supplied harness and dual switch.

  • Suits 3dr models
  • Plug and play installation
  • No changes to factory wiring required
  • Maintains factory functions
  • Dual momentary switches
  • The dual switch illumination is fully dimmable via the factory dimmer switch
  • LED illumination – Cyan (Amber – switch held on).





Headlight Washer Switch @ Custom Icon dual switch (B)

Replaces the factory headlight washer switch with one dual function switch with a icon of your choice (just leave a comment during checkout and we will confirm if available) this is a direct replacement, no changes or modifications to the factory headlight washer wiring required.

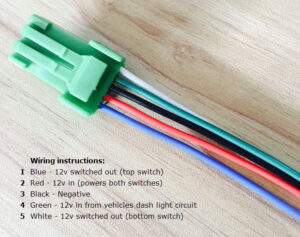

Simply unplug the factory connector remove the factory headlight washer switch and connect the supplied harness and dual switch, there is a single blue wire that provides a negative signal when the switch is depressed this is to be connected to the negative side of a relay (#85)

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains factory function
  • Momentary switch (Headlight washer) No/off or momentary available (custom icon)
  • The dual switch illumination is fully dimmable via the factory dimmer switch
  • LED illumination – Cyan (Amber – switch held on).



Dual Switch – Custom Icons (C)

Custom dual switches available upon request, just leave a comment during check out or contact us prior to purchase for the icons you require on the top and bottom of the switch and if momentary switch operation(s) is required (on/off is supplied by default) we will notify you if not possible (due to space or trademark limitations).

  • Momentary or on/off options available
  • LED illumination – Cyan (Amber – switch on).



Patch harness ONLY to suit factory 5dr Lane Departure Warning (Off) & Driving Assist (DSBS) switch (D)

Utilising the  factory 5dr Lane Departure Warning (Off) & Driving Assist (DSBS) dual switch (not included) to be fitted into a 3dr model.

The *factory dual switch is not included, image is for reference only this switch can be purchased from a Suzuki Service Centre the item number is: 37692M80T00 item description: Switch Assy, AEB Off & LDW Off confirm theses details with the parts department prior to ordering.

Simply unplug the two factory connectors, remove the factory switches and connect the supplied harness and *factory dual switch.

  • Plug and play installation
  • No changes to factory wiring required
  • Maintains factory functions
  • Factory dual switch not included.

NOTE:*Factory dual switch is not included you will receive a patch harness that the factory switch will connect to, that then connects to the two existing factory connectors on a 3dr model.



Single switch is also available to fit in the centre console next to handbrake  (E)

  • LED illumination – Amber
  • Momentary or on/off options available
  • Custom icons available.

Additional information

Weight 0.210 kg
Dimensions 17 × 14 × 5 cm
Make Model Year
Suzuki Jimny JB74 2018 - 2024
