MU-X MY25 Facelift Headlight Patch Harness

Code: MY25MUXP

Available soon!

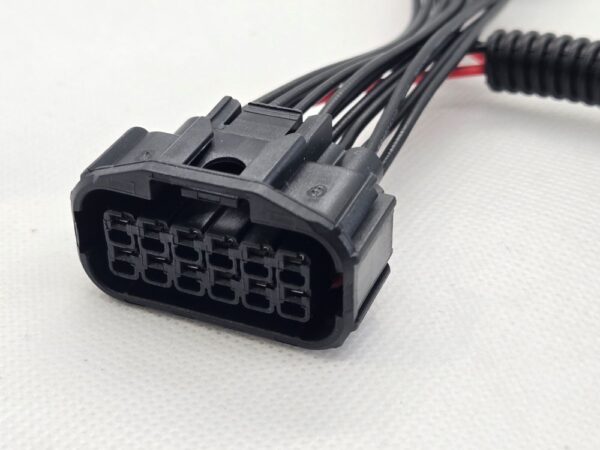

Compatible with the new facelift MY25 MU-X LED headlights that uses the twelve pin connector.









AUD$38.00

Out of stock

Description

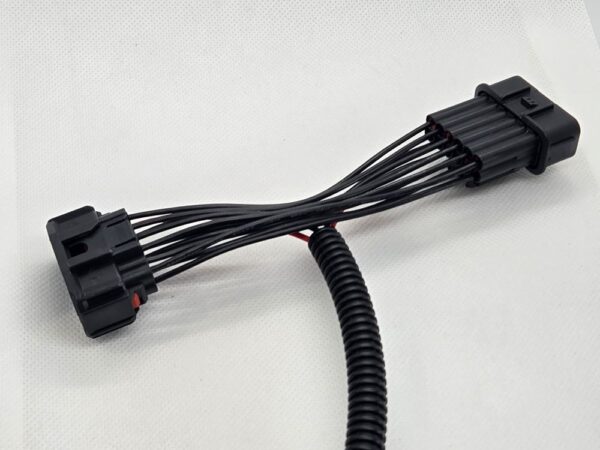

This twelve pin patch harness is fitted inside the engine bay between the factory headlight and headlight connector providing a 12 volt output whenever the vehicles high beam headlights are activated.

No cutting of the factory wiring is required, simply unplug the existing factory connector and fit the patch harness between the factory connectors and then connect the output T connector directly to your existing wiring harness.

Included is the matting connector, as different manufactures have variations of the T connector that is commonly used within the driving light and LED bar wiring harness.

Additional information

Weight 0.050 kg
Dimensions 15 × 5 × 3 cm
Make Model Year
Isuzu MU-X 2025
